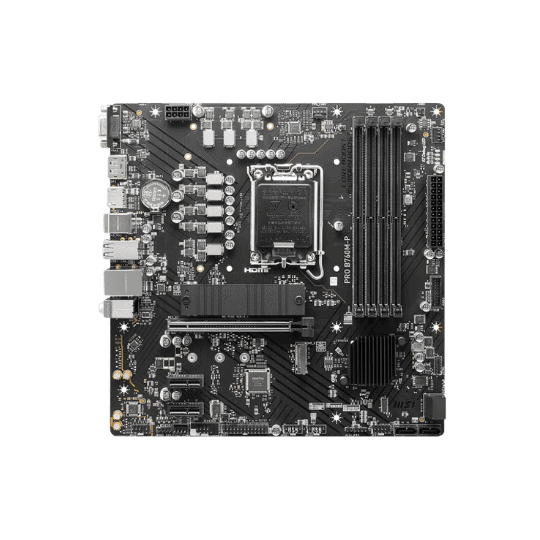

The MSI PRO B760M-P DDR5 Motherboard, available online at zestrogaming.com and across our physical storefronts in Rawalpindi and Karachi, is an advanced, highly expandable micro-ATX platform engineered for high-performance office and gaming systems. Powered by the Intel B760 chipset and LGA 1700 socket, it fully supports Intel 14th, 13th, and 12th Generation Core, Pentium Gold, and Celeron processors.
Equipped with four DDR5 memory slots supporting up to an impressive 256GB of RAM with overclocking speeds up to 6800+ MHz and XMP 3.0 OC profiles, a reinforced PCIe 4.0 x16 slot, and dual lightning-fast PCIe 4.0 M.2 slots for NVMe storage, it delivers exceptional modern bandwidth.
Featuring triple display outputs (HDMI, DisplayPort, and VGA), Realtek Gigabit LAN, 7.1-channel high-definition audio, rear USB 10Gbps Type-C connectivity, an RGB LED header (JRGB), and EZ Debug LEDs for seamless troubleshooting, it provides a powerful and future-proof foundation for custom PC builds.
Make Checkout our B760 Motherboard Price in Pakistan
Complete Technical Specifications Table
1. General Information & Processor Support |
|---|
| Brand | MSI |
| Model Name | PRO B760M-P DDR5 |
| Form Factor | Micro-ATX |
| Chipset | Intel B760 |
| CPU Socket | LGA 1700 |
| Processor Support | Intel Core 14th / 13th / 12th Gen Processors, Intel Pentium Gold & Celeron Processors |
2. Memory Specifications |
|---|
| Memory Slots | 4x DDR5 DIMM Slots |
| Maximum Memory Capacity | 256 GB |
| Memory Support & Overclocking | DDR5 up to 6800+(OC) MHz; 1DPC 1R up to 6800+ MHz, 2DPC 2R up to 5600+ MHz; Supports JEDEC speeds (5600 down to 4800 MHz); Supports Intel Extreme Memory Profile (XMP) 3.0 OC |
| Channel Architecture | Supports Dual-Controller Dual-Channel Mode |
| Memory Type | Non-ECC, Un-buffered Memory |
3. Expansion Slots & Graphics |
|---|
| PCI-E Slots | 1x PCIe 4.0 x16 slot (From CPU)
2x PCIe 4.0 x1 slots (From Chipset) |
| Onboard Graphics Outputs | 1x HDMI 1.4 (Max. resolution 4K @ 30Hz)
1x DisplayPort 1.4 (Max. resolution 4K @ 60Hz)
1x VGA port (Max. resolution up to 2048×1536 @ 50Hz / 1920×1200 @ 60Hz)
(Available only on processors featuring integrated graphics) |
4. Storage & Audio |
|---|
| M.2 Storage Slots | 2x M.2 Slots:
• M.2_1 (From CPU): Supports up to PCIe 4.0 x4, 2280/2260/2242 devices
• M.2_2 (From Chipset): Supports up to PCIe 4.0 x4 / SATA mode, 2280/2260/2242 devices |
| SATA Ports & RAID | 4x SATA 6Gb/s Ports (Supports RAID 0, RAID 1, RAID 5, and RAID 10)
(Note: SATA5 will be unavailable when installing an M.2 SATA SSD in the M.2_2 slot) |
| Audio Codec | Realtek ALC897 Codec |
| Audio Channels | 7.1-Channel High Definition Audio |
5. Connectivity & USB Ports |
|---|
| LAN Controller | Realtek RTL8111H Gigabit LAN |

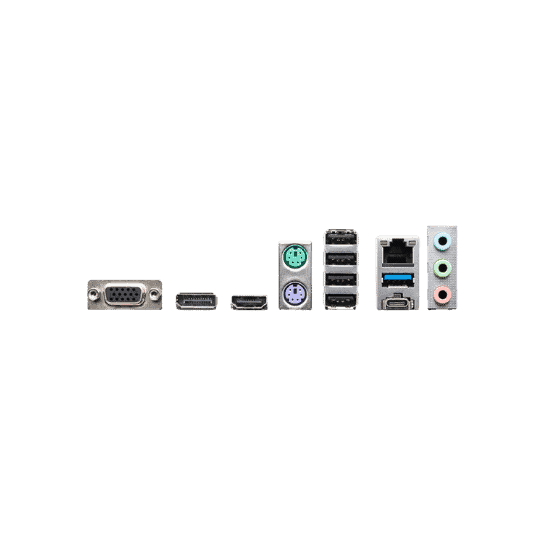

| Rear USB Ports | 4x USB 2.0, 1x USB 5Gbps Type-A, 1x USB 10Gbps Type-C |
| Front USB Ports (Internal) | 4x USB 2.0 ports, 2x USB 5Gbps Type-A ports |
6. Internal Connectors & Features |
|---|
| Power Connectors | 1x 24-pin ATX Main Power, 1x 8-pin CPU Power |
| Fan Headers | 1x CPU Fan Header, 2x System Fan Headers |
| LED / Lighting Headers | 1x RGB LED Connector (JRGB) |
| Internal Headers | 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Printer Port (JLPT), 1x COM Port (JCOM), 1x TPM Pin Header (Support TPM 2.0) |
| Diagnostics | 4x EZ Debug LEDs |
