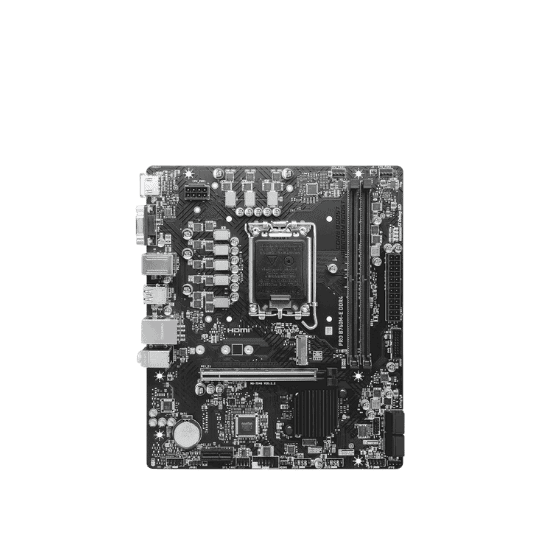

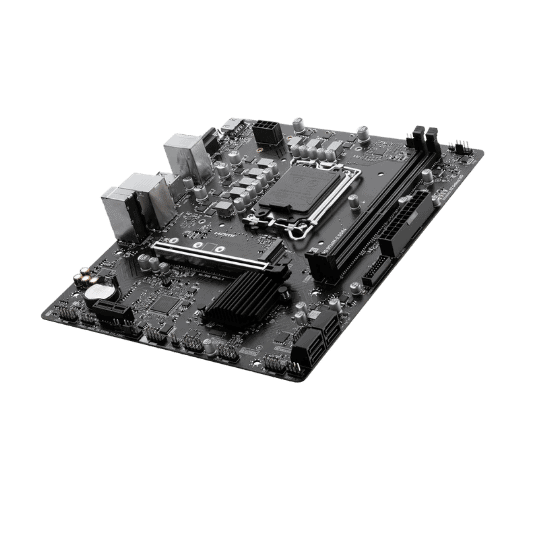

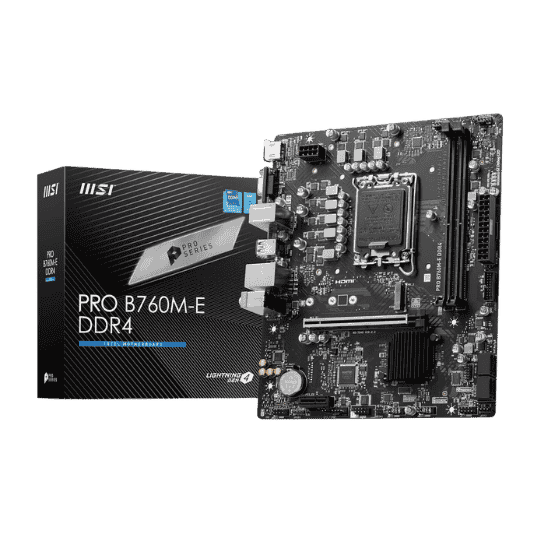

The MSI PRO B760M-E DDR4 Motherboard, available online at zestrogaming.com and across our physical storefronts in Rawalpindi and Karachi, is a reliable and feature-rich micro-ATX platform engineered for high-stability office and gaming systems. Powered by the Intel B760 chipset and LGA 1700 socket, it fully supports Intel 14th, 13th, and 12th Generation Core, Pentium Gold, and Celeron processors.
Equipped with robust DDR4 memory support (up to 64GB across dual channels with overclocking frequencies up to 4800+ MHz and XMP support), a PCIe 4.0 x16 slot for dedicated graphics, and a PCIe 4.0 x4 M.2 slot for high-speed NVMe SSDs, it delivers strong performance capabilities.
Featuring dual display outputs (HDMI and VGA), Realtek Gigabit LAN, 7.1-channel high-definition audio, SATA RAID support, an RGB LED header (JRGB), and EZ Debug LEDs for seamless troubleshooting, it provides an exceptional foundation for custom PC builds.
Make checkout our B760 Motherboard Price In Pakistan
Complete Technical Specifications Table
1. General Information & Processor Support |
|---|
| Brand | MSI |
| Model Name | PRO B760M-E DDR4 |
| Form Factor | Micro-ATX |
| Chipset | Intel B760 |
| CPU Socket | LGA 1700 |
| Processor Support | Intel Core 14th / 13th / 12th Gen Processors, Intel Pentium Gold & Celeron Processors |
2. Memory Specifications |
|---|
| Memory Slots | 2x DDR4 DIMM Slots |
| Maximum Memory Capacity | 64 GB |
| Memory Support & Overclocking | DDR4 up to 4800+(OC) MHz; Supports JEDEC speeds (3200 down to 2133 MHz); Supports Intel Extreme Memory Profile (XMP) |
| Channel Architecture | Supports Dual-Channel Mode |
| Memory Type | Non-ECC, Un-buffered Memory |
3. Expansion Slots & Graphics |
|---|
| PCI-E x16 Slot | 1x PCIe 4.0 x16 slot (From CPU) |
| PCI-E x1 Slot | 1x PCIe 3.0 x1 slot (From Chipset) |
| Onboard Graphics Outputs | 1x HDMI 1.4 (Max. resolution 4K @ 30Hz)
1x VGA port (Max. resolution up to 2048×1536 @ 50Hz / 1920×1200 @ 60Hz)
(Available only on processors featuring integrated graphics) |
4. Storage & Audio |
|---|
| M.2 Storage Slots | 1x M.2 Slot (M.2_1 from Chipset, supports up to PCIe 4.0 x4 / SATA mode, devices 2280 / 2260 / 2242) |
| SATA Ports & RAID | 4x SATA 6Gb/s Ports (Supports RAID 0, RAID 1, RAID 5, and RAID 10)
(Note: SATA5 will be unavailable when installing an M.2 SATA SSD in the M.2_1 slot) |
| Audio Codec | Realtek ALC897 Codec |
| Audio Channels | 7.1-Channel High Definition Audio |
5. Connectivity & USB Ports |
|---|
| LAN Controller | Realtek RTL8111H Gigabit LAN |
| USB 2.0 Ports | 4x Rear USB 2.0 + 4x Front USB 2.0 (Internal headers) |
| USB 5Gbps Ports | 2x Rear USB 5Gbps Type-A + 2x Front USB 5Gbps Type-A (Internal headers) |
6. Internal Connectors & Features |
|---|
| Power Connectors | 1x 24-pin ATX Main Power, 1x 8-pin CPU Power |
| Fan Headers | 1x CPU Fan Header, 2x System Fan Headers |
| LED / Lighting Headers | 1x RGB LED Connector (JRGB) |
| Internal Headers | 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x COM Port (JCOM), 1x TPM Pin Header (Support TPM 2.0), USB internal headers (2x USB 2.0 ports, 1x USB 5Gbps port) |
| Diagnostics | 4x EZ Debug LEDs |
