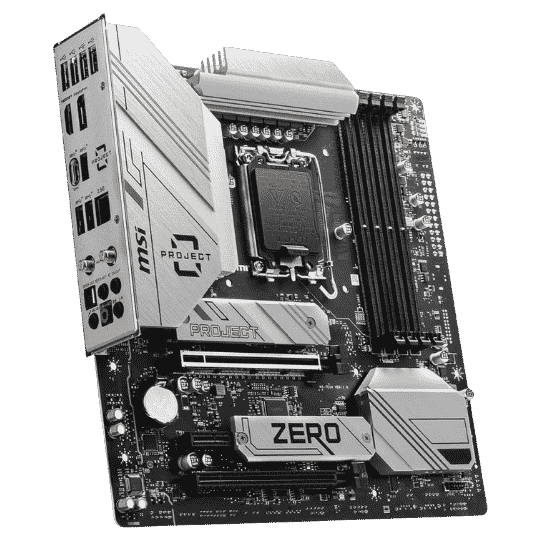

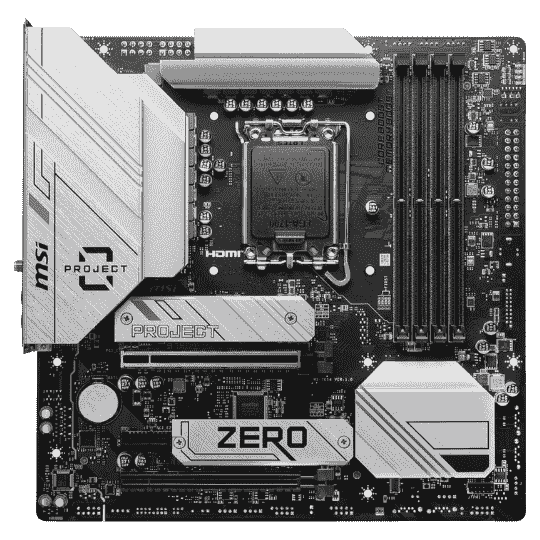

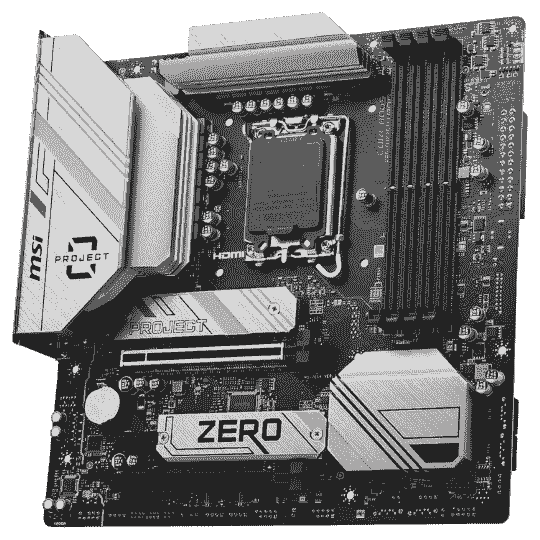

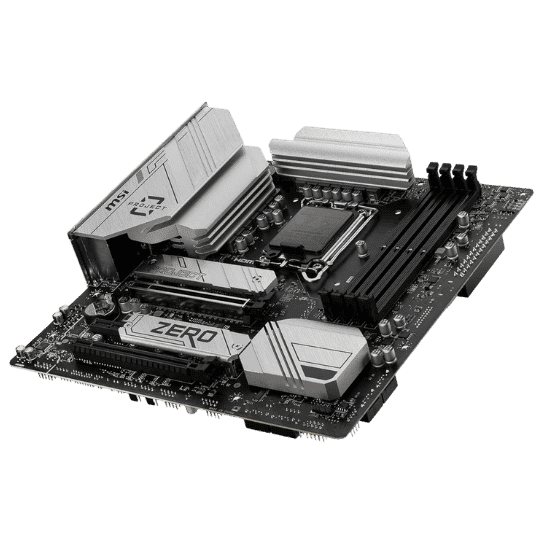

The MSI B760M Project Zero DDR5 Micro-ATX Motherboard, available online at zestrogaming.com and across our physical storefronts in Rawalpindi and Karachi, is an innovative, back-connect gaming platform engineered to provide a completely cable-free aesthetic on the front side of your build. Powered by the Intel B760 chipset and LGA 1700 socket, it fully supports Intel 14th, 13th, and 12th Generation Core, Pentium Gold, and Celeron processors. Equipped with four DDR5 memory slots supporting up to an impressive 256GB of RAM with extreme overclocking speeds up to 7800+ MHz and XMP profiles, a reinforced PCIe 5.0 x16 slot for next-gen graphics cards, and dual PCIe 4.0 M.2 NVMe slots, it delivers elite-tier performance. Featuring high-speed Realtek 2.5Gbps LAN, pre-installed Intel Wi-Fi 6E and Bluetooth 5.3, dual display outputs (HDMI 2.1 and DisplayPort 1.4), 7.1-channel high-definition audio with S/PDIF output, extensive USB connectivity including a rear 20Gbps USB Type-C port, dual Addressable V2 RGB headers, and EZ Debug LEDs for seamless troubleshooting, it serves as the ultimate clean-build foundation for enthusiasts.
Complete Technical Specifications Table
1. General Information & Processor Support |
|---|
| Brand | MSI |
| Model Name | B760M Project Zero |
| Form Factor | Micro-ATX (Back-Connect / Zero Cable Design) |
| Chipset | Intel B760 |
| CPU Socket | LGA 1700 |
| Processor Support | Intel Core 14th / 13th / 12th Gen Processors, Intel Pentium Gold & Celeron Processors |
2. Memory Specifications |
|---|
| Memory Slots | 4x DDR5 DIMM Slots |
| Maximum Memory Capacity | 256 GB |
| Memory Support & Overclocking | DDR5 up to 7800+(OC) MT/s; 1DPC 1R up to 7800+ MHz, 2DPC 2R up to 5600+ MHz; Supports JEDEC speeds (5600 down to 4800 MT/s); Supports Intel Extreme Memory Profile (XMP) |
| Channel Architecture | Supports Dual-Channel Mode |
| Memory Type | Non-ECC, Un-buffered Memory |
3. Expansion Slots & Graphics |
|---|
| PCI-E Slots | 2x PCIe x16 slots, 1x PCIe x1 slot:
• PCI_E1: PCIe 5.0 x16 (From CPU)
• PCI_E2: PCIe 3.0 x1 (From Chipset)
• PCI_E3: PCIe 4.0 x4 (From Chipset) |
| Onboard Graphics Outputs | 1x HDMI 2.1 (Max. resolution 4K @ 60Hz)
1x DisplayPort 1.4 (Max. resolution 4K @ 60Hz)
(Available only on processors featuring integrated graphics) |
4. Storage & Audio |
|---|
| M.2 Storage Slots | 2x M.2 Slots:
• M.2_1 (From CPU): Supports up to PCIe 4.0 x4, devices 2280/2260/2242
• M.2_2 (From Chipset): Supports up to PCIe 4.0 x4 / SATA mode, devices 2280/2260/2242 |
| SATA Ports & RAID | 4x SATA 6Gb/s Ports (Supports RAID 0, RAID 1, RAID 5, and RAID 10) |
| Audio Codec & Features | Realtek ALC897 Codec, 7.1-Channel High Performance Audio with S/PDIF Output |
5. Connectivity, Networking & USB Ports |
|---|
| LAN Controller | Realtek 2.5Gbps LAN |
| Wireless & Bluetooth | Intel Wi-Fi 6E (Pre-installed in M.2 Key-E slot; supports 2.4/5/6GHz up to 2.4Gbps, MU-MIMO, 802.11 a/b/g/n/ac/ax)
Bluetooth 5.3 (FIPS, FISMA) |
| Rear USB Ports | 4x USB 2.0, 3x USB 10Gbps Type-A, 1x USB 20Gbps Type-C |
| Front USB Ports (Internal / Back-Connect Headers) | 4x USB 2.0 ports, 2x USB 5Gbps Type-A ports, 1x USB 10Gbps Type-C port |
6. Internal Connectors & Features |
|---|
| Power Connectors | 1x 24-pin ATX Main Power, 2x 8-pin CPU Power (Rear-facing for cable management) |
| Fan Headers | 1x CPU Fan Header, 1x Pump Fan Header, 4x System Fan Headers |
| LED / Lighting Headers | 2x Addressable V2 RGB LED Connectors (JARGB_V2), 2x RGB LED Connectors (JRGB) |
| Internal Headers | 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Tuning Controller (JDASH), 1x TPM Pin Header (Support TPM 2.0) |
| Diagnostics | 4x EZ Debug LEDs |
