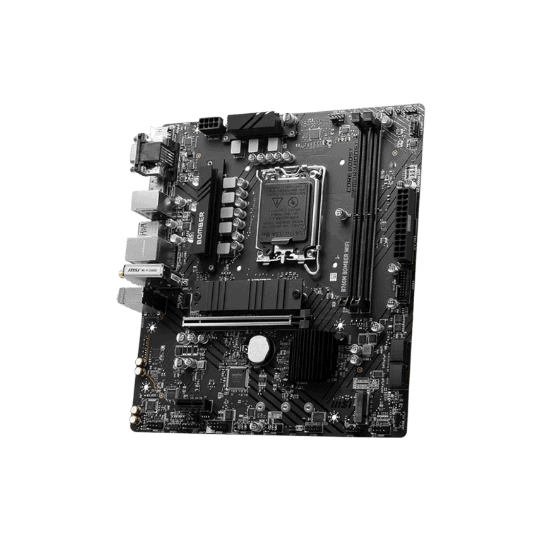

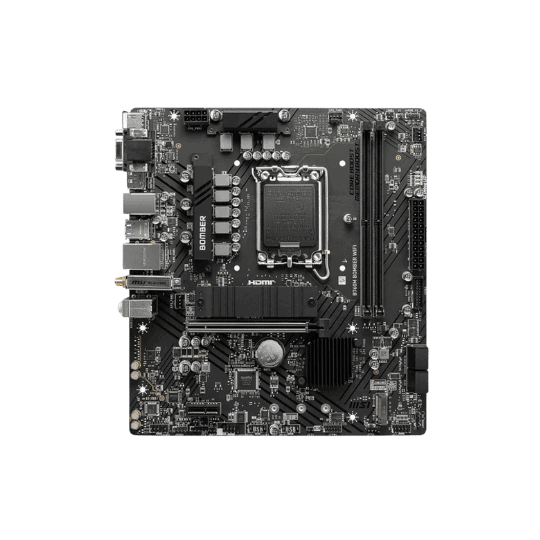

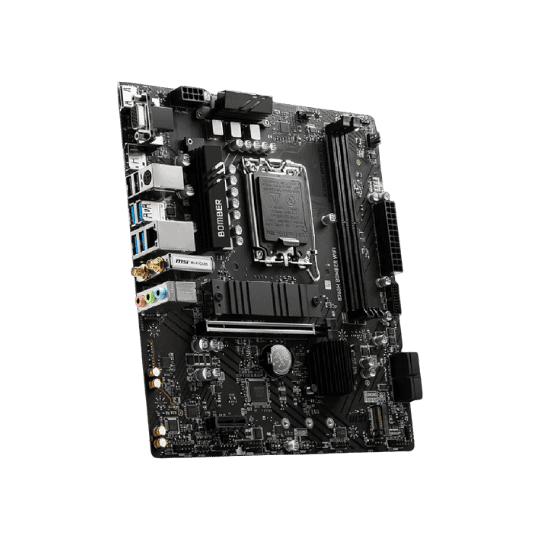

The MSI B760M Bomber WiFi DDR5 Micro-ATX Motherboard, available online at zestrogaming.com and across our physical storefronts in Rawalpindi and Karachi, is an exceptionally well-rounded, feature-rich platform engineered for high-performance office and gaming systems.
Powered by the Intel B760 chipset and LGA 1700 socket, it fully supports Intel 14th, 13th, and 12th Generation Core, Pentium Gold, and Celeron processors. Equipped with high-speed DDR5 memory support (up to 128GB across dual channels with overclocking frequencies up to 6400+ MHz and XMP 3.0 OC), a reinforced PCIe 4.0 x16 slot, and dual PCIe 4.0 M.2 slots for rapid NVMe storage, it delivers stellar modern speed.
Featuring lightning-fast Realtek 2.5Gbps LAN, pre-installed Intel Wi-Fi 6E and Bluetooth 5.3 wireless connectivity, triple display outputs (HDMI 2.1, DisplayPort 1.4, and VGA), 7.1-channel high-definition audio, dual addressable V2 RGB headers (JARGB_V2), and EZ Debug LEDs for seamless troubleshooting, it provides a powerful, connectivity-loaded foundation for custom PC builds.
Make checkout our B760 Motherboard Price in Pakistan
Complete Technical Specifications Table
1. General Information & Processor Support |
|---|
| Brand | MSI |
| Model Name | B760M Bomber WiFi |
| Form Factor | Micro-ATX |
| Chipset | Intel B760 |
| CPU Socket | LGA 1700 |
| Processor Support | Intel Core 14th / 13th / 12th Gen Processors, Intel Pentium Gold & Celeron Processors |
2. Memory Specifications |
|---|
| Memory Slots | 2x DDR5 DIMM Slots |
| Maximum Memory Capacity | 128 GB |
| Memory Support & Overclocking | DDR5 up to 6400+(OC) MHz; 1DPC 1R up to 6400+ MHz, 1DPC 2R up to 5600+ MHz; Supports JEDEC speeds (5600 down to 4800 MHz); Supports Intel Extreme Memory Profile (XMP) 3.0 OC |
| Channel Architecture | Supports Dual-Controller Dual-Channel Mode |
| Memory Type | Non-ECC, Un-buffered Memory |
3. Expansion Slots & Graphics |
|---|
| PCI-E Slots | 1x PCIe 4.0 x16 slot (From CPU)
1x PCIe 4.0 x1 slot (From Chipset) |
| Onboard Graphics Outputs | 1x HDMI 2.1 (Max. resolution 4K @ 60Hz)
1x DisplayPort 1.4 (Max. resolution 4K @ 60Hz)
1x D-Sub / VGA port (Max. resolution up to 2048×1536 @ 50Hz / 1920×1200 @ 60Hz)
(Available only on processors featuring integrated graphics) |
4. Storage & Audio |
|---|
| M.2 Storage Slots | 2x M.2 Slots:
• M.2_1 (From CPU): Supports up to PCIe 4.0 x4, 2280/2260/2242 devices
• M.2_2 (From Chipset): Supports up to PCIe 4.0 x4 / SATA mode, 2280/2260/2242 devices |
| SATA Ports & RAID | 4x SATA 6Gb/s Ports (Supports RAID 0, RAID 1, RAID 5, and RAID 10)
(Note: SATA7 will be unavailable when installing an M.2 SATA SSD in the M.2_2 slot) |
| Audio Codec | Realtek ALC897 Codec |
| Audio Channels | 7.1-Channel High Definition Audio |
5. Connectivity, Networking & USB Ports |
|---|
| LAN Controller | Realtek RTL8125B 2.5Gbps LAN |
| Wireless & Bluetooth | Intel Wi-Fi 6E (Pre-installed in M.2 Key-E slot; supports 2.4/5/6GHz up to 2.4Gbps, MU-MIMO, 802.11 a/b/g/n/ac/ax)
Bluetooth 5.3 |

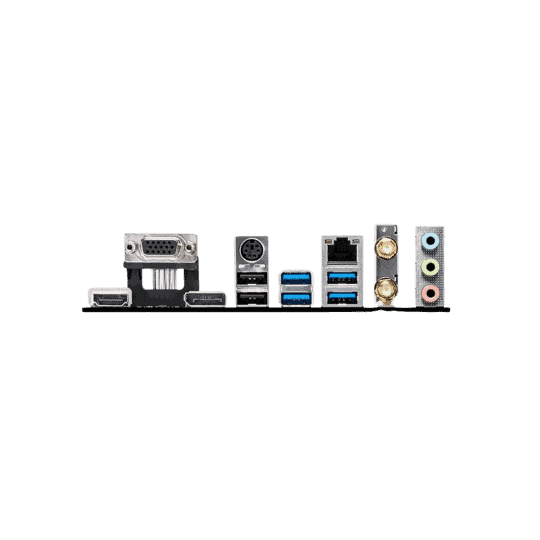

| Rear USB Ports | 2x USB 2.0, 4x USB 5Gbps Type-A |
| Front USB Ports (Internal) | 4x USB 2.0 ports, 2x USB 5Gbps Type-A ports |
6. Internal Connectors & Features |
|---|
| Power Connectors | 1x 24-pin ATX Main Power, 1x 8-pin CPU Power |
| Fan Headers | 1x CPU Fan Header, 2x System Fan Headers |
| LED / Lighting Headers | 2x Addressable V2 RGB LED Connectors (JARGB_V2), 1x RGB LED Connector (JRGB) |
| Internal Headers | 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x COM Port (JCOM), 1x TPM Pin Header (Support TPM 2.0) |
| Diagnostics | 4x EZ Debug LEDs |
