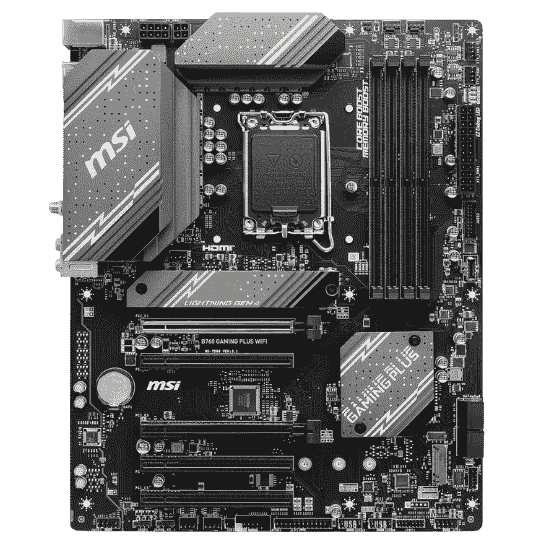

The MSI B760 Gaming Plus WiFi DDR5 ATX Motherboard, available online at zestrogaming.com and across our physical storefronts in Rawalpindi and Karachi, is a premium, high-performance ATX platform engineered for enthusiasts building robust gaming rigs and high-end workstations. Powered by the Intel B760 chipset and LGA 1700 socket, it fully supports Intel 14th, 13th, and 12th Generation Core, Pentium Gold, and Celeron processors.
Equipped with four DDR5 memory slots supporting up to 256GB of RAM with overclocking speeds up to 6800+ MHz and XMP 3.0 OC profiles, a reinforced PCIe 4.0 x16 slot, and dual lightning-fast PCIe 4.0 M.2 slots (supporting up to 22110 devices) for NVMe storage, it delivers stellar bandwidth and expansion capacity.
Featuring lightning-fast Realtek 2.5Gbps LAN, pre-installed Intel Wi-Fi 6E and Bluetooth 5.3 wireless connectivity, dual display outputs (HDMI 2.1 and DisplayPort 1.4), 7.1-channel high-definition audio with S/PDIF output, extensive USB connectivity including rear 10Gbps Type-A and Type-C ports, dual Addressable V2 RGB headers (JARGB_V2), and EZ Debug LEDs for seamless troubleshooting, it serves as an elite foundation for custom desktop systems.
Make Checkout Our B760 Motherboard Price In Pakistan
Complete Technical Specifications Table
1. General Information & Processor Support |
|---|
| Brand | MSI |
| Model Name | B760 Gaming Plus WiFi |
| Form Factor | ATX |
| Chipset | Intel B760 |
| CPU Socket | LGA 1700 |
| Processor Support | Intel Core 14th / 13th / 12th Gen Processors, Intel Pentium Gold & Celeron Processors |
2. Memory Specifications |
|---|
| Memory Slots | 4x DDR5 DIMM Slots |
| Maximum Memory Capacity | 256 GB |
| Memory Support & Overclocking | DDR5 up to 6800+(OC) MHz; 1DPC 1R up to 6800+ MHz, 2DPC 2R up to 5600+ MHz; Supports JEDEC speeds (5600 down to 4800 MHz); Supports Intel Extreme Memory Profile (XMP) 3.0 OC |
| Channel Architecture | Supports Dual-Controller Dual-Channel Mode |
| Memory Type | Non-ECC, Un-buffered Memory |
3. Expansion Slots & Graphics |
|---|
| PCI-E Slots | 5x PCIe Slots:
• PCI_E1: PCIe 4.0 x16 (From CPU)
• PCI_E2: PCIe 3.0 x1 (From Chipset)
• PCI_E3: PCIe 4.0 x4 (From Chipset)
• PCI_E4: PCIe 3.0 x1 (From Chipset)
• PCI_E5: PCIe 3.0 x1 (From Chipset) |
| Onboard Graphics Outputs | 1x HDMI 2.1 (Max. resolution 4K @ 60Hz)
1x DisplayPort 1.4 (Max. resolution 4K @ 60Hz)
(Available only on processors featuring integrated graphics) |
4. Storage & Audio |
|---|
| M.2 Storage Slots | 2x M.2 Slots:
• M.2_1 (From CPU): Supports up to PCIe 4.0 x4, devices 22110/2280/2260/2242
• M.2_2 (From Chipset): Supports up to PCIe 4.0 x4 / SATA mode, devices 2280/2260/2242 |
| SATA Ports & RAID | 4x SATA 6Gb/s Ports (Supports RAID 0, RAID 1, RAID 5, and RAID 10)
(Note: SATA8 will be unavailable when installing an M.2 SATA SSD in the M.2_2 slot) |
| Audio Codec & Features | Realtek ALC897 Codec, 7.1-Channel High Definition Audio with S/PDIF Output |
5. Connectivity, Networking & USB Ports |
|---|
| LAN Controller | Realtek RTL8125BG 2.5Gbps LAN |
| Wireless & Bluetooth | Intel Wi-Fi 6E (Pre-installed in M.2 Key-E slot; supports 2.4/5/6GHz up to 2.4Gbps, MU-MIMO, 802.11 a/b/g/n/ac/ax)
Bluetooth 5.3 |
| Rear USB Ports | 4x USB 2.0, 2x USB 10Gbps Type-A, 1x USB 10Gbps Type-C |
| Front USB Ports (Internal) | 4x USB 2.0 ports, 2x USB 5Gbps Type-A ports, 1x USB 5Gbps Type-C port |
6. Internal Connectors & Features |
|---|
| Power Connectors | 1x 24-pin ATX Main Power, 2x 8-pin CPU Power |
| Fan Headers | 1x CPU Fan Header, 1x Pump Fan Header, 5x System Fan Headers |
| LED / Lighting Headers | 2x Addressable V2 RGB LED Connectors (JARGB_V2), 1x RGB LED Connector (JRGB) |
| Internal Headers | 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Printer Port (JLPT), 1x COM Port (JCOM), 1x TPM Pin Header (Support TPM 2.0) |
| Diagnostics | 4x EZ Debug LEDs |
