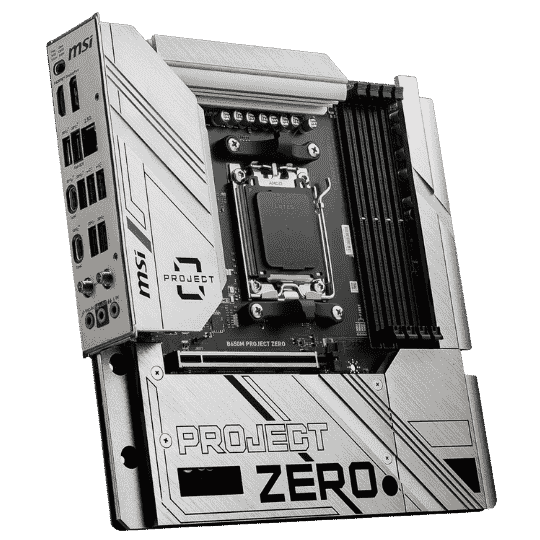

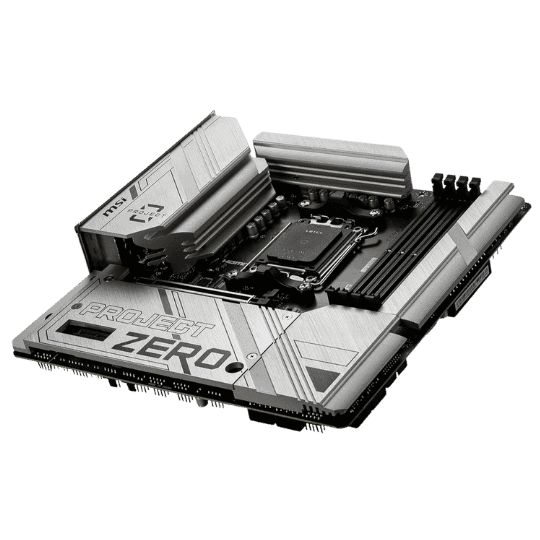

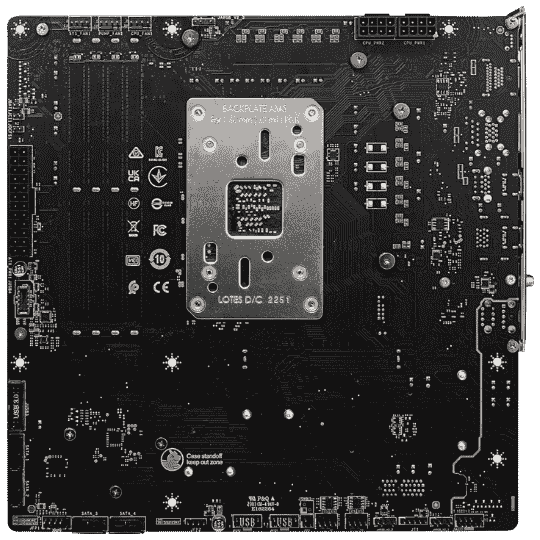

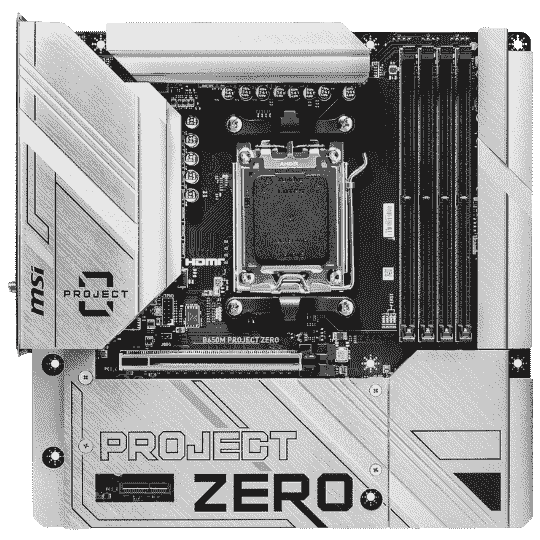

The MSI B650M Project Zero AMD AM5 Micro-ATX Motherboard, available online at zestrogaming.com and across our physical storefronts in Rawalpindi and Karachi, is an innovative, back-connect gaming platform engineered to deliver a completely cable-free visible aesthetic on the front of your build. Powered by the AMD B650 chipset and Socket AM5, it fully supports AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors.
Equipped with four DDR5 memory slots supporting up to an impressive 256GB of RAM with extreme overclocking speeds up to 7600+ MHz and AMD EXPO™ profiles, a reinforced PCIe 4.0 x16 slot for dedicated graphics, and dual PCIe 4.0 M.2 NVMe storage slots with RAID support, it offers elite-tier performance and clean cable management.
Featuring ultra-fast Realtek 2.5Gbps LAN, pre-installed AMD Wi-Fi 6E and Bluetooth 5.3 wireless connectivity, dual display outputs (HDMI 2.1 and DisplayPort 1.4), Realtek ALC897 7.1-channel high-definition audio with 32-bit/384 kHz front panel playback support, extensive rear and front USB connectivity including a rear 20Gbps Type-C port and Flash BIOS button, triple Addressable V2 RGB headers, and EZ Debug LEDs for seamless troubleshooting, it serves as the ultimate clean-build foundation for modern custom desktop systems.
Make checkout our B650 Motherboard Price in Pakistan
Complete Technical Specifications Table
1. General Information & Processor Support |
|---|
| Brand | MSI |
| Model Name | B650M Project Zero |
| Form Factor | Micro-ATX (Back-Connect / Zero Cable Design) |
| Chipset | AMD B650 |
| CPU Socket | AMD Socket AM5 |
| Processor Support | AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Operating System Support | Support for Windows® 11 64-bit, Windows® 10 64-bit |
2. Memory Specifications |
|---|
| Memory Slots | 4x DDR5 DIMM Slots |
| Maximum Memory Capacity | 256 GB |
| Memory Support & Overclocking | DDR5 up to 7600+(OC) MT/s; 1DPC 1R up to 7600+ MHz, 2DPC 2R up to 5400+ MHz; Supports JEDEC speeds; Supports AMD EXPO™ |
| Channel Architecture | Supports Dual-Channel Mode |
| Memory Type | Non-ECC, Un-buffered Memory |
3. Expansion Slots & Graphics |
|---|
| PCI-E Slots | 2x PCIe Slots:
• PCI_E1: PCIe 4.0 x16 (From CPU; scales x16 for Ryzen 9000/7000, x8 for 8700/8600/8400, x4 for 8500/8300)
• PCI_E2: PCIe 3.0 x1 (From Chipset) |
| Onboard Graphics Outputs | 1x HDMI 2.1 (Max. resolution 4K @ 60Hz)
1x DisplayPort 1.4 (Max. resolution 4K @ 60Hz)
(Available only on processors featuring integrated graphics) |
4. Storage & Audio |
|---|
| M.2 Storage Slots | 2x M.2 Slots (From CPU):
• M.2_1: Supports up to PCIe 4.0 x4, devices 2280 / 2260
• M.2_2: Supports up to PCIe 4.0 x4, devices 2280 / 2260
(Note: M.2_2 slot will be unavailable when using Ryzen™ 8500 / 8300 Series processors) |
| SATA Ports & RAID | 4x SATA 6Gb/s Ports (Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices; SATA_A1_A2 do not support RAID)
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Audio Codec & Features | Realtek® ALC897 Codec, 7.1-Channel High Definition Audio (Supports up to 32-Bit / 384 kHz playback on front panel) |
5. Connectivity, Networking & USB Ports |
|---|
| LAN Controller | Realtek® RTL8125BG 2.5Gbps LAN |
| Wireless & Bluetooth | AMD Wi-Fi 6E Module (Pre-installed in M.2 Key-E slot; supports 2.4/5/6GHz up to 80MHz bandwidth, MU-MIMO, 802.11 a/b/g/n/ac/ax)
Bluetooth 5.3 |

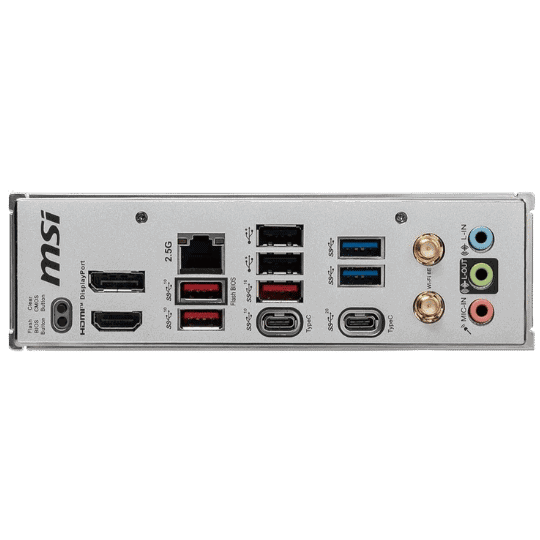

| Rear USB Ports | 2x USB 2.0, 2x USB 5Gbps Type-A, 3x USB 10Gbps Type-A, 1x USB 10Gbps Type-C, 1x USB 20Gbps Type-C |
| Front USB Ports (Internal / Back-Connect Headers) | 4x USB 2.0 ports, 2x USB 5Gbps Type-A ports, 1x USB 10Gbps Type-C port |
6. Internal Connectors & Features |
|---|
| Power Connectors | 1x 24-pin ATX Main Power, 2x 8-pin CPU Power (Rear-facing for cable management) |
| Fan Headers | 1x CPU Fan Header, 1x Pump Fan Header, 3x System Fan Headers |
| LED / Lighting Headers | 3x Addressable V2 RGB LED Connectors (JARGB_V2) |
| Internal Headers | 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x TPM Pin Header (Support TPM 2.0) |
| Special Buttons | Flash BIOS Button, Clear CMOS Button (Rear panel) |
| Diagnostics | 4x EZ Debug LEDs |
