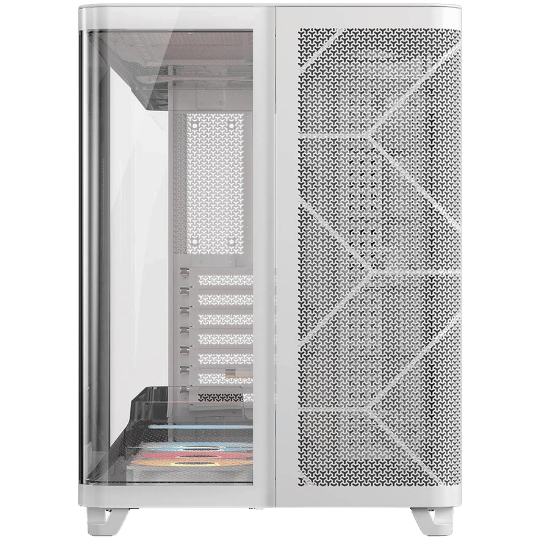

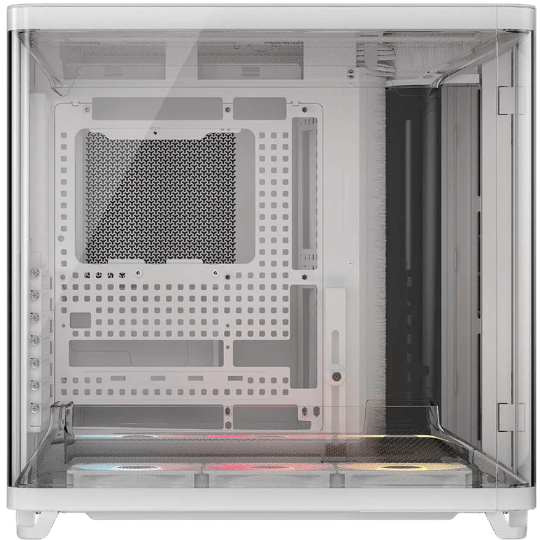

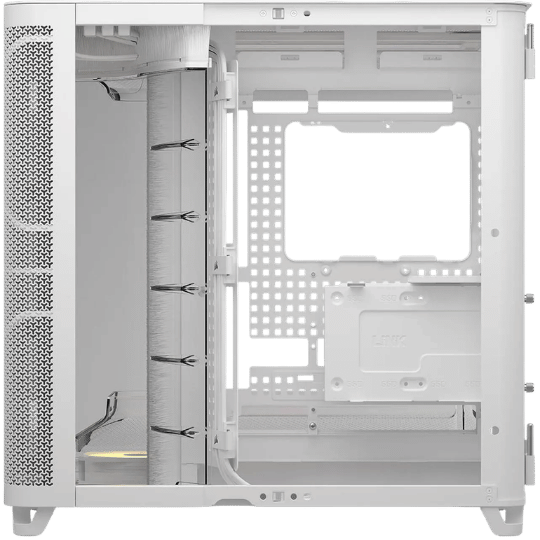

The Corsair AIR 5400 RS-R Triple-Chamber ATX PC Case in White, available online at zestrogaming.com and across our physical storefronts in Rawalpindi and Karachi, is engineered for revolutionary triple-chamber thermal isolation, immaculate white showcase aesthetics, and reverse-connector motherboard compatibility. Built with a robust steel and dual tempered glass chassis measuring 470 × 340 × 467 mm (18.5 × 13.4 × 18.4 in) and weighing 16.9 kg, it supports Mini-ITX, Micro-ATX, ATX, and E-ATX (up to 305 × 277 mm) motherboards—including back-connect systems—alongside 7 horizontal expansion slots. Equipped with pre-installed RS-R ARGB Series fans, extensive cooling potential supporting up to 10 fans, and top/front/bottom 360mm radiator compatibility. Featuring a front I/O panel with ultra-fast USB 3.2 Gen 2×2 Type-C, an astonishing 134mm of cable routing depth with Corsair’s RapidRoute system, a tempered glass left-side panel, and generous hardware clearances for up to a 360mm graphics card, 180mm CPU coolers, and 200mm PSUs, the AIR 5400 RS-R White brings professional-grade architectural innovation and clean build execution to your battle station.
Complete Technical Specifications Table
1. General Information & Compatibility |
|---|
| Brand / Model | Corsair AIR 5400 RS-R Triple-Chamber ATX PC Case (White Edition) |
| Product Type | Triple-Chamber ARGB Gaming & Showcase PC Case |
| Motherboard Support | Mini-ITX / Micro-ATX / ATX / E-ATX *(Includes Reverse-Connector M/B Support)* |
| Dimensions & Weight | 470 × 340 × 467 mm (18.5 × 13.4 × 18.4 in) *(Weight: 16.9 kg)* |
| Expansion Slots | 7 Horizontal Slots |
2. Drive Bays, Front I/O & Panels |
|---|
| Drive Bay Capacity | 1x 3.5″ Drive Bay | 2x 2.5″ Drive Bays |
| Front I/O Panel | 1x USB 3.2 Gen 2×2 Type-C | 2x USB 3.2 Gen 1 Type-C | 1x Audio In/Out Combo Jack |
| Chassis Panels & Layout | Left Side: Tempered Glass | Right Side: Steel | Triple-Chamber Architecture |
3. Cooling, Fans & Radiator Support |
|---|
| Pre-installed Fans | Corsair RS-R ARGB Series White Smart Fans Included |
| Fan Support (Max. 10 Fans) | Top: 3× 120mm | Front: 3× 120mm | Bottom: 3× 120mm | Rear: 1× 120mm |
| Water Cooling Radiators | Top / Front / Bottom: Up to 360mm | Rear: 120mm |
| Cable Routing Space | Triple-Chamber Layout with 134 mm Cable Depth & RapidRoute |
4. Hardware Clearance Limits |
|---|
| Max. Graphics Card Length | Up to 360 mm |
| Max. CPU Cooler Height | Up to 180 mm |
| Max. PSU Length | Up to 200 mm |
