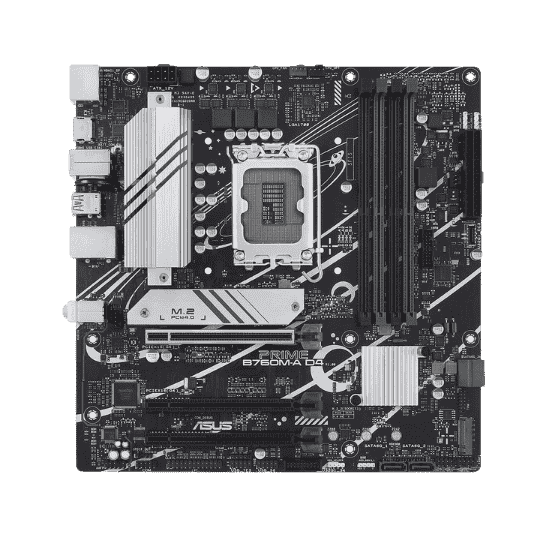

The ASUS Prime B760M-A WIFI LGA 1700 Micro-ATX Motherboard, available online at zestrogaming.com and across our physical storefronts in Rawalpindi and Karachi, is an advanced, high-performance platform engineered for mainstream and high-end 12th, 13th, and 14th Generation Intel® Core™ system builds. Powered by the Intel® B760 chipset and LGA 1700 socket, it fully supports modern Intel® desktop processors.
Equipped with four dual-channel DDR5 DIMM slots featuring OptiMem II routing, supporting up to 192GB of RAM with extreme overclocking speeds up to 7200+(OC) MHz and Intel® Extreme Memory Profile (XMP), a reinforced PCIe 4.0 x16 SafeSlot Core+ slot for dedicated graphics, and dual PCIe 4.0 M.2 NVMe storage slots with dedicated M.2 heatsink cooling alongside four SATA 6Gb/s ports, it delivers exceptional speed, expansion, and thermal stability.
Featuring integrated Wi-Fi 6, Bluetooth 5.2, ultra-fast Realtek 2.5Gb Ethernet, triple display outputs (DisplayPort 1.4 and dual HDMI 2.1 ports), Realtek 7.1-channel high-definition audio with premium capacitors, extensive USB connectivity including a front USB 3.2 Gen 1 Type-C® port and rear USB 3.2 Gen 2 Type-A ports, Addressable Gen 2 RGB and Aura RGB headers with Aura Sync support, and ASUS 5X Protection III hardware safeguards, it serves as a premier foundation for custom desktop systems.
Make Checkout our B760 Motherboard price in PakistanÂ
Complete Technical Specifications Table
1. General Information & Processor Support |
|---|
| Brand | ASUS |
| Model Name | Prime B760M-A WIFI |
| Form Factor | Micro-ATX (24.4 cm × 24.4 cm / 9.6 in × 9.6 in) |
| Chipset | Intel® B760 |
| CPU Socket | Intel® Socket LGA1700 |
| Processor Support | Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors |
| Operating System Support | Windows® 11, Windows® 10 64-bit |
2. Memory Specifications |
|---|
| Memory Slots | 4x DDR5 DIMM Slots (Q-DIMM, OptiMem II) |
| Maximum Memory Capacity | 192 GB |
| Memory Support & Overclocking | DDR5 7200+(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600 / 5400 / 5200 / 5000 / 4800 MHz; Supports Intel® Extreme Memory Profile (XMP) and On-Die ECC |
| Channel Architecture | Dual-Channel Memory Architecture |
| Memory Type | Non-ECC, Un-buffered Memory |
3. Expansion Slots & Graphics |
|---|
| PCI-E Slots | 3x PCIe Slots:
• PCI_E1 (From CPU): PCIe 4.0 x16 slot (SafeSlot Core+, supports max @x16 mode)
• PCI_E2 (From Chipset): PCIe 4.0 x16 slot (supports x4 mode)
• PCI_E3 (From Chipset): PCIe 4.0 x16 slot (supports x1 mode) |
| Onboard Graphics Outputs | 1x DisplayPort 1.4 (Supports max. 4K @ 60Hz)
2x HDMI® ports (Supports 4K @ 60Hz as specified in HDMI 2.1)
(Graphics specifications and availability vary depending on CPU types) |
4. Storage & Audio |
|---|
| M.2 Storage Slots | 2x M.2 Slots (Key M) with M.2 Heatsink:
• M.2_1 (From CPU): type 2242/2260/2280 (Supports PCIe 4.0 x4 mode)
• M.2_2 (From Chipset): type 2242/2260/2280 (Supports PCIe 4.0 x4 mode) |
| SATA Ports & RAID | 4x SATA 6Gb/s ports (Intel® B760 Chipset)
Supports Intel® Rapid Storage Technology for SATA RAID 0/1/5/10 |
| Audio Codec & Features | Realtek 7.1 Surround Sound High Definition Audio CODEC (Supports up to 24-Bit/192 kHz playback, Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers) |
5. Connectivity, Networking & USB Ports |
|---|
| LAN Controller | Realtek 2.5Gb Ethernet port with LANGuard |
| Wireless & Bluetooth | Wi-Fi 6 (802.11 a/b/g/n/ac/ax, 2×2 dual-band 2.4/5GHz), Bluetooth v5.2 |

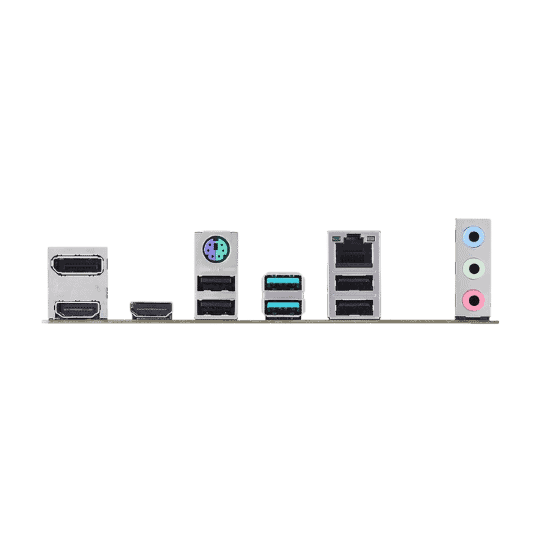

| Rear USB Ports | 2x USB 3.2 Gen 2 Type-A ports, 4x USB 2.0 Type-A ports |
| Front USB Ports (Internal & Header) | 1x USB 3.2 Gen 1 connector (supports USB Type-C®), 2x USB 3.2 Gen 1 headers (support 4 additional USB 3.2 Gen 1 ports), 3x USB 2.0 headers (support 5 additional USB 2.0 ports) |
| Legacy Peripherals | 1x PS/2 Keyboard/Mouse combo port |
6. Internal Connectors & Features |
|---|
| Power Connectors | 1x 24-pin Main Power connector, 1x 8-pin +12V Power connector (ProCool) |
| Fan Headers | 1x 4-pin CPU Fan header, 1x 4-pin CPU OPT Fan header, 2x 4-pin Chassis Fan headers |
| Lighting Headers | 3x Addressable Gen 2 headers, 1x Aura RGB header (Aura Sync support) |
| Internal Headers | 1x COM Port header, 1x LPT header, 1x Front Panel Audio header (AAFP), 1x S/PDIF Out header, 1x SPI TPM header (14-1pin), 1x Clear CMOS header, 1x 20-3 pin System Panel header (με Chassis Intrude function) |
| Special Features | ASUS 5X Protection III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O), ASUS Q-Design (Q-DIMM, Q-LED Core, Q-Slot), ASUS Thermal Solution (M.2 heatsink, VRM heatsink design), Wi-Fi moving antennas |
